| MOQ: | 500개 |
| 가격: | negotiable |
| 표준 포장: | 표준 수출 패키지 |
| 배송 기간: | 25 새로운 샘플을 위해 일로 일합니다 |
| 결제수단: | T/T, 서부 동맹, L/C |
| 공급능력: | 달 당 50,000pcs |

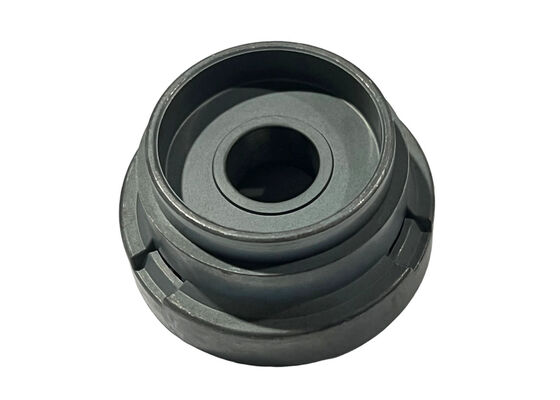

Product Overview: XIAYI High Precision Powder Metallurgy Shock Absorber Guide Assembly — an OEM-grade sintered metal rod guide engineered with integrated bearing and PTFE guide ring for superior shock absorber performance in 2-wheel and 4-wheel vehicles.
| Parameter | Specification |
|---|---|
| Model Number | Rod Guide |
| Raw Materials | MPIF FC-0205 (Alloy Powder) |
| Density | 6.2 - 6.8 g/cm³ |
| Hardness | HRB 65 - 90 |
| Car Compatibility | Universal — All Car Rod Guides |
| Manufacturing Process | Powder Metallurgy (Sintering) |
| Net Weight | 202 g |
| Molds Lead Time | 25 Days |
| Applied Press | 80 - 150 T |
XIAYI is a specialized manufacturer of powder metallurgy components for shock absorber systems, producing pistons, valve cases, and rod guides that serve as the core functional elements in both 2-wheel and 4-wheel vehicle suspension assemblies. Our sinter powder metal OEM rod guide integrates a precision bearing and PTFE guide ring, ensuring low-friction piston rod movement and long service life under demanding operating conditions.
Our comprehensive shock absorber component portfolio includes:
Mixing Powder → Forming → Sintering → Sizing → After Treatment → Steam Treatment → Oil Impregnation → Packing → Shipping
Quality Testing Capabilities| Test Equipment | Application |
|---|---|
| Carbon Sulfur Determinator | Material composition verification |
| Metallurgical Microscope | Microstructure analysis |
| Hydraulic Universal Material Tester | Mechanical strength validation |
| Hardness Testers | Hardness compliance (HRB scale) |
| Pneumatic Measuring Instrument | Dimensional accuracy |
| Measuring Projector | Profile and geometry inspection |
| Coordinate Measuring Machine (CMM) | 3D dimensional verification |
| Electrical Profile Meter | Surface roughness measurement |
| Gear Testing Instrument | Gear and spline accuracy |
| Packaging Detail | Specification |
|---|---|
| Units per Carton | 200 pcs |
| Carton Dimensions | 36.5 × 22.5 × 14.5 cm |
| Gross Weight per Carton | 24.5 kg |
| Net Weight per Carton | 24.0 kg |
| Pallet Configuration | Multiple cartons per pallet |
| Container Capacity | 6 - 7 pallets per container |
Q: What is a powder metallurgy shock absorber rod guide?
A powder metallurgy rod guide is a precision sintered metal component that positions and supports the piston rod within a shock absorber. Manufactured by compacting and sintering metal powders (typically MPIF FC-0205 alloy), it integrates a bearing surface and often a PTFE guide ring to ensure smooth, low-friction axial movement of the piston rod while maintaining precise alignment under dynamic loads.
Q: What material is used for your rod guides?
We use MPIF FC-0205 alloy powder, an iron-copper-carbon composition optimized for powder metallurgy. This material delivers density of 6.2-6.8 g/cm³ and hardness of HRB 65-90 after sintering and sizing. The composition provides an excellent balance of wear resistance, dimensional stability, and cost-effectiveness for automotive-grade shock absorber components.
Q: Do you offer OEM and custom manufacturing?
Yes, XIAYI specializes in OEM manufacturing with full customization support. We provide design review, material consultation, tooling development (25-day mold lead time), and PPAP Level III documentation. Our engineering team can adapt guide dimensions, material grades, and surface treatments to meet your specific shock absorber design requirements.
Q: What is your minimum order quantity (MOQ)?
Our standard MOQ is 500 pieces per order. For prototype or trial orders, we can accommodate smaller quantities on a case-by-case basis. Please contact our sales team to discuss your specific requirements.
Q: What quality certifications do you hold?
XIAYI is ISO 9001:2008 certified. We submit PPAP Level III documentation for automotive OEM projects. Our in-house quality lab is equipped with CMM, metallurgical microscopes, hardness testers, carbon sulfur determinators, and universal material testing machines, enabling comprehensive dimensional, material, and mechanical property verification.
Q: What is your typical delivery time?
For new samples requiring mold development, delivery time is approximately 25 working days. For repeat orders with existing tooling, standard lead time is 15-20 working days depending on order volume. Expedited production may be available upon request.
|
|
